2.02 dh_Snapshots:
This script is used to store "snapshots" of the Mixer Control Panel state.
It saves and restores individual track visibility (of the Mixer Control Panel),
which tracks are selected, and individual track solo, mute, pan, and volume settings.
It can also save fx enabled states. Which settings are affected
can be set in the "Preferences" window. It does not affect
any track routing, or phasing. The script window contains
a listbox with all the mixer control panel snapshots created with this script.
Changing project tabs updates the script with the current project data.
Snapshots window (showing Desert theme)
Click on an item to select it then click on the “Apply”
button to apply it.
To create a new snapshot click on the “Add” button.
This opens the "Create New Snapshot" dialog box (more on this later).
To rename a snapshot Alt+click on the “Add” button.
This opens the "Rename Snapshot" dialog box.
Clicking the “Delete” button will delete the currently
selected snapshot. You will be prompted to confirm the deletion.
Clicking the “Prefs” button will open the
"Preferences" window .
Note:
A snapshot is a list of reaper tracks and their states.
It is highly likely that tracks are added or removed between,
or even during script usage. Tracks that are no longer available
are considered to be “ghost” tracks. When applying a snapshot
and it encounters a ghost track, the script will prompt you
if you want to remove the track reference from the snapshot.
Click “Yes” to remove the reference. (This will not affect
the project as the track has already been removed.)
There is also an option in Preferences to automatically remove them.
Create New Snapshot:
Clicking on the “Add” button
opens the “Create New Snapshot” dialog box.
It has a textbox where you enter the name that you want for the new snapshot.
It is initially populated with the name of the last selected snapshot.
Enter or modify the name as you desire then click the
“Save” button to save it.
If the name already exists you will be prompted if you want
to overwrite the existing snapshot.
Create new snapshot window

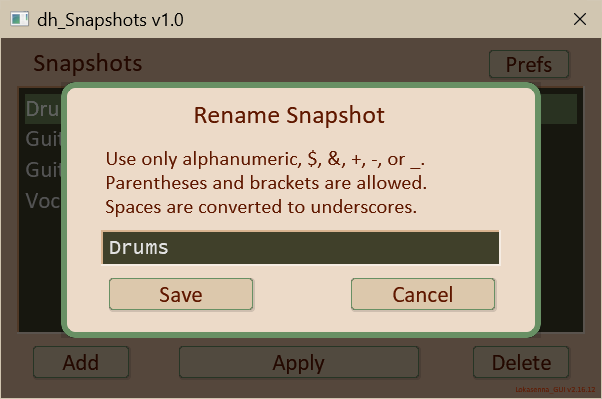

Rename Snapshot:
Alt+Click on the “Add” button
opens the “Rename Snapshot” dialog box.
It has a textbox where you enter the new name that you desire.
It is initially populated with the name of the last selected snapshot.
Enter or modify the name as you desire then click the
“Save” button to save it.
If the name already exists a message box will warn you.
You cannot rename to an existing name in the list.
Rename snapshot window
Preferences:
Clicking the “Prefs” button
will open the "Preferences" window.
Preferences window
The App Scale panel:
Current Scale:
Making a selection from this selection box scales the script
window, including all elements and fonts.
Current Font Scale:
Making a selection from this selection box scales all of the
script's fonts relative to 'designed' size. This is included
in case a system font's size is different than that of the
system the script was designed on.
(The font size of native menuboxes and
message boxes will not change as they are determined by the system.)
Use Outlines:
Use this checkbox to specify the type of outlines to use.
The text elements, knob and slider display boxes, and slider
track normally use a highlight/lowlight frame derived from the
background color. Alternately, the frames can use a single color
outline specified the theme's 'elm_frame' color.
Check the box to use the latter. (Themes have
a false color 'metadata' which is used to specify that the GUI
is to always use the single color option.)
Thick Frames:
Use this checkbox is used to specify if thinner or
thicker outlines should be displayed. As of 04-16-2026 they are
1 pixel or 2 pixel width.
The Themes panel:
Current dh_theme:
Use this menubox to select a dh_Toolkit theme for the GUI.
If "User" theme is selected it displays the
"Current User theme"
menubox (if there are any user themes). Use that menubox
to select a user theme.
The Options panel:
Displays the snapshot options. The first six options are always saved
when adding a snapshot. If an option is checked that option
will be restored when applying the snapshot (by clicking the “Apply” button).
By unchecking the boxes you can disable if those states are updated.
The fx_enabled option,
if checked, will save the enabled states of all the tracks fx
when adding a new snapshot. If this option is checked when applying a snapshot,
and the enabled states were saved, then they will be applied
when clicking the "Apply" button.
If the fx_params option if checked,
and the fx_enabled option is checked, then all parameters
of each enabled fx will be saved when adding a new snapshot.
If this option is checked when applying a snapshot,
and the enabled states were saved, and the parameters were saved,
then they will be applied when clicking the "Apply" button.
This options can result in large file size (I haven't tested performance)
and should probably remained unchecked except for limited instances.
The auto_del_ghost_items option:
It's possible that a reaper track has been deleted,
but the snapshot still holds a reference to it. I call these "ghost tracks".
They are harmless, but there is no need to have them around.
If this box is unchecked you will be prompted to remove them
when applying a snapshot. If this option is checked then the
reference will be removed automatically.
“Close” button:
Click this to return to the main script.
